Multi-Region Deployment Paradigm
On this page
Multi-region Atlas deployments set up cluster nodes across multiple regions (as defined by the cloud providers). Multi-region deployments enhance protection in the case of a regional outage by automatically rerouting traffic to a node in another region for continuous availability and a smooth user experience. Multi-region deployments can also enhance performance and can help meet compliance requirements for data sovereignty.
A multi-region deployment may have multiple regions within the same geography (a large area like a continent or country), single regions in multiple geographies, or multiple regions in multiple geographies.
Multi-region deployments can exist with a single cloud provider or multiple cloud providers. To learn about multi-cloud deployments, see Multi-Cloud Deployment Paradigm.
To learn how to configure multi-region deployments and learn about the different types of nodes you can add, see Configure High Availability and Workload Isolation in the Atlas documentation.
Use Cases for Multi-Region Deployments

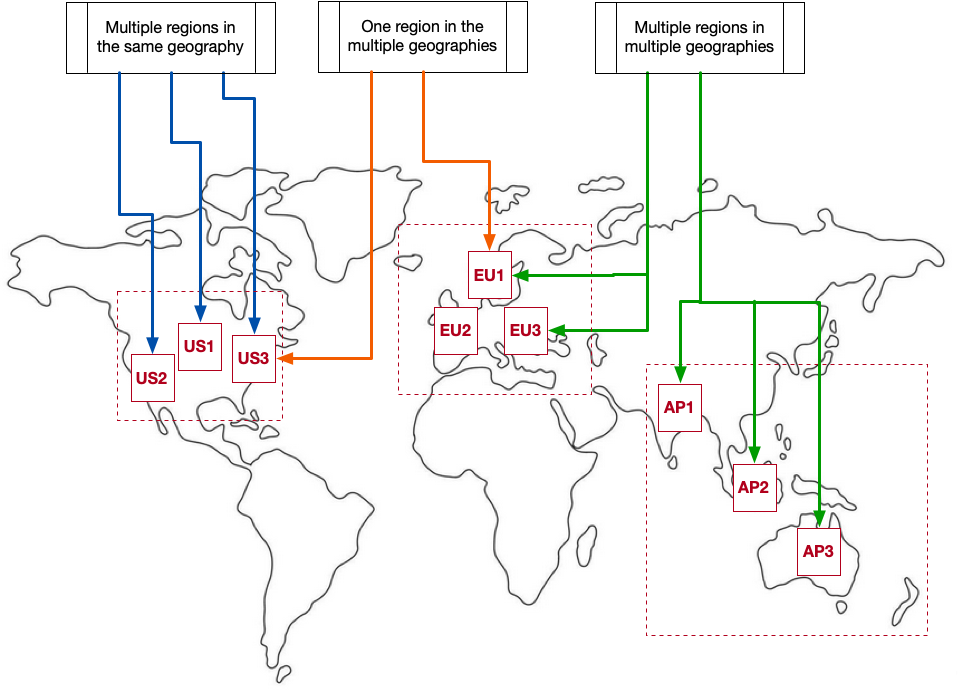

Consider the 3 use cases in the following image:
In the first example, you have an application that has users
primarily located in the US. You create a multi-region deployment
in three regions within the US. This ensures low latency, since all regions are
within the US, while also offering high availability if there's a regional
outage on one of the nodes (for example, us-east-1).
In the second example, your application requires low latency and high availability for users in both the US and Europe. You create a multi-region deployment with a region located in both the US and Europe.
The most complex example of a multi-region deployment has multiple regions in multiple geographies, ensures the highest level of availability with a single provider. If your application requires the very highest level of availability and lowest latency, consider a Multi-Cloud Deployment Paradigm.
Global Deployments
Global Atlas deployments are the most complex multi-region deployment paradigms, and therefore require very careful planning. In almost all cases, a Multi-Region Deployment Paradigm (or its subset, a Multi-Cloud Deployment Paradigm) will fulfill your needs.
The following are a few reasons why you might consider a global deployment strategy:
You need a single global connection string.
You need to perform global aggregations across all customers.
You need the ability to read/write for all customers from everywhere in one logical cluster, while also having regional reads/writes.
Note
The complexity of global deployments results in many opinions on best practices. The Atlas Architecture Center does not currently cover recommendations specific to global deployments. Contact MongoDB's Professional Services team to discuss your specific requirements and to design a Atlas global deployment strategy.
Data Sovereignty and High Availability Considerations
For compliance with data residency laws, data can be partitioned to reside in specific regions, ensuring adherence to local regulations. However, deploying to a single region sacrifices high availability if there is a regional outage.
You can configure a multi-region deployment for both high availability
and data sovereignty. For example, for an application deployed with AWS
that requires data storage in Europe, you can deploy a multi-region deployment
to three regions within the EU (such as eu-west-1, eu-west-2,
and eu-west-3). This ensures data sovereignty since all regions are within
the EU, while offering high availability if there's a regional outage that
affects one of the nodes.
Considerations for Multi-Region Deployments
Other considerations for multi-region deployments include:
High availability depends on the deployment of nodes across regions as well as the number, distribution, and priority order of nodes. To learn more about recommended cluster topologies for high availability, see Guidance for Atlas High Availability.
Multi-region deployments are available only for
M10dedicated clusters and larger.High availability and low latency also depend on where you deploy your application. When optimizing for availability and latency, plan the deployment of your entire application stack, not just the database.
For more considerations, see Considerations in the Atlas documentation.
Recommendations for Multi-Region Deployments
To find recommendations for your Atlas cloud deployments, refer to the following resources:
Operational Efficiency
Security
Reliability
Performance
Cost Optimization
